Pressure sensor for combustion analysis

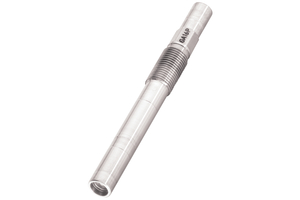

Sensor GA16P

The industry benchmark in size M5 for R&D in glow plug adaptors

The AVL sensor GA16P features our special Double Shell™ design and thermally optimized crystal elements. It is the leading M5-sized combustion pressure sensor for research and development tasks in glow plug adaptors with a 4.4mm bore.

A derivative of the sensor GH14P, this piezoelectric combustion sensor can be used in combination with glow plug adaptors in diesel engines. The GA16P comes with an M3 connector which enables the smallest installation tool clearance diameters.

The Double Shell design separates the piezoelectric elements from negative influences of mechanical stresses that occur due to its mounting in the adaptor or engine. Additionally, this small yet robust indicating sensor can be equipped with a sensor identification cable (SIC) for sensor data management (SDM). Furthermore, with a shock resistance of 2,000 g it can deliver precise results under demanding conditions.

Scope of Supply

  • Sensor GA16P
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 O-rings)
  • Calibration sheet
  • Documentation

Article Number

  • TIGG1924A.01
