Pressure sensor for combustion analysis

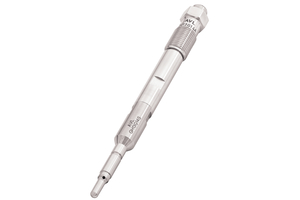

Sensor GH13G

The industry benchmark in size M8 and M10 for R&D in small glow plug bores

The AVL sensor GH13G is the industry standard for M8 and M10-size combustion pressure sensors. It features a special Double Shell™ design and thermally optimized piezoelectric crystal elements.

The GH13G is a glow-plug sensor for diesel applications where the cylinder head design requires glow-plug diameters down to 4.3 mm. With its improved membrane, this indicating sensor is practically flush mounted, which leads to high signal quality without pipe oscillations.

The shape of the glow-plug sensor is tailored to suit the requirements of the customer. Additionally, this combustion analysis sensor is equipped with a sensor identification cable (SIC) for sensor data management (SDM).

Highly precise, it has a measuring range up to 250 bar, with overload rated at 300 bar. Different calibrated ranges are available, and shock resistance is greater than or equal to 2,000 g and guarantees robustness.

Scope of Supply

  • Sensor GH13G
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 O-rings)
  • Calibration sheet
  • Documentation


Article Numbers

  • TIGH13GPA.01
