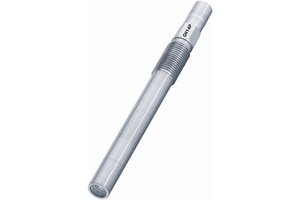

Sensor GH14P

In combination with a glow-plug adaptor a nearly flush mounted solution for diesel engines

The AVL sensor GH14P, combined with its direct-mount glow plug adaptor, is an almost flush-mounted sensor for diesel engines. This M5-size combustion pressure sensor features an M3 connector to allow the smallest installation tool clearance diameters. Furthermore, its dimensions can be tailored to meet the requirements of the customer.

With a special Double Shell™ design, this indicating sensor boasts thermally optimized piezoelectric crystal elements. These can be decoupled from the negative influences of mechanical stresses that can occur due to its mounting in the engine. This allows measurements without pipe oscillations and pressures of up to 250 bar.

This tiny pressure measurement solution is equipped with a sensor identification cable (SIC) for sensor data management (SDM). Additionally, the use of a thermo protection like PH08 can improve the cyclic drift by 0.3 bar.

Scope of Supply

  • Sensor GH14P
  • Piezo-input cable CI35-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 O-rings)
  • Calibration sheet
  • Documentation

Article Numbers

  • TIGG1323A.01
