Pressure sensor for combustion analysis

Sensor GH15D

The industry benchmark in size M5 for thermodynamic analysis with smallest contour

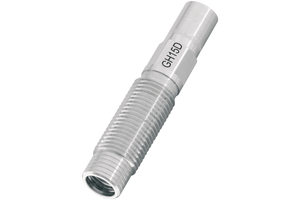

The AVL sensor GH15D has a slim form factor thanks to its M3-sized cable connector, and is equipped with a sensor identification cable (SIC) for sensor data management (SDM). With thermally optimized piezoelectric crystal elements and a special Double Shell™ design, this indicating sensor delivers precise thermodynamic measurements.

The piezoelectric elements of this combustion sensor are decoupled from negative influences of the mechanical stresses caused by its mounting in the engine. The addition of thermo protection like PH08 can improve the cyclic drift of this combustion analysis sensor by 0.3 bar.

The GH15D has a measuring range from 0 to 250 bar, with overload at 300 bar. Shock resistance of 2,000 g and a weight of just 2.2 grams without the cable make this indicating sensor both small and robust.

Scope of Supply

  • Sensor GH15D
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 spare O-rings)
  • Calibration sheet
  • Documentation


Article Numbers

  • TIGG1349B.01
