Pressure sensor for combustion analysis

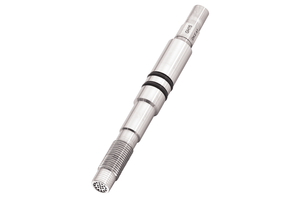

Sensor GH15DKE-A

Size M5 sensor with integrated adaptor and sealing rings

Featuring our special Double Shell™ design and thermally optimized crystal elements, the GH15DKE-A indicating sensor is the benchmark in size M5 for standard R&D tasks. Accurate and robust, it is especially suited for supercharged engines with high specific output.

An elongated version of the GH15DK sensor, this powerful engine development tool can be used within oil and water jackets without requiring an adaptor sleeve. The piezoelectric elements of this combustion sensor are decoupled from the negative influences of mechanical stresses that can occur due to the sensor’s mounting.

An improved membrane material and geometry makes the GH15DKE-A cylinder pressure sensor more durable. This gives it the ideal balance between accuracy and robustness, making it the standard solution for research and development work.

Using a thermo-protection like PH08 can improve the cyclic drift by 0.4 bar. Furthermore, the sensor is equipped with a sensor identification cable (SIC) for sensor data management (SDM).

Scope of Supply

  • Sensor GH15DKE-A
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 spare O-rings)
  • Calibration sheet
  • Documentation

Article number

  • TIGG1595A.01
