Pressure sensor for combustion analysis

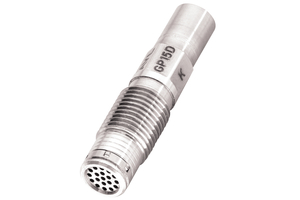

Sensor GP15DK

The industry benchmark in size M5 for R&D with maximal robustness

Featuring a special Double Shell™ design and thermally optimized piezoelectric crystal elements, the AVL sensor GP15DK is built for maximum robustness. Its M3 cable connector enables a slim form factor in this M5-size indicating sensor, which is ideal for supercharged engines with high knock events.

The sensor GP15DK decouples its piezoelectric elements from the negative influence of the mechanical stresses that can occur due to its mounting within the engine. This, combined with the sensor’s improved membrane material and geometry, makes it an industry standard combustion sensor for working with heavy knock events and pre-ignition.

Additionally, this robust and accurate M5-size sensor can be equipped with a sensor identification cable (SIC) for sensor data management (SDM).

Scope of Supply

  • Sensor GP15DK
  • Thermo protection PH08
  • Piezo-input cable CI35-1
  • Coupling CC31
  • Accessory kit (protection cap + 2 spare O-rings)
  • Calibration sheet
  • Documentation

Article Number

  • TIGG1892A.01
