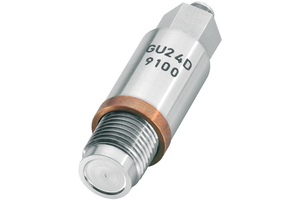

GU24D_schraeg

Pressure sensor for combustion analysis

Sensor GU24D

The industry benchmark in M8 (uncooled) thermodynamic analysis sensors

The robust AVL GU24D sensor features the convenient installation of M8 thread-type sensors. This is combined with the high accuracy and durability that is required of such a precise piezoelectric combustion sensor.

This industry benchmark thermodynamic analysis solution includes a special Double ShellTM design. This feature decouples the thermally-optimized piezoelectric crystal elements from the negative influence of the mechanical stresses that can occur from its mounting inside the engine. This increases the accuracy and robustness of this uncooled M8 sensor, making it a best-in-class solution for a wide variety of combustion engine development tasks.

The AVL GU24D combustion analysis sensor is equipped with a sensor identification cable (SIC) for sensor data management (SDM).

Scope of Supply

  • Sensor GU24D
  • Piezo-input cable CI41-1
  • Coupling CC41
  • Gasket SG21
  • Accessory kit (protection cap + 2 O-rings)
  • Spare gasket SG21
  • Calibration sheet
  • Documentation

Article Number

  • TIGG1329A.01
