Pressure sensor for combustion analysis

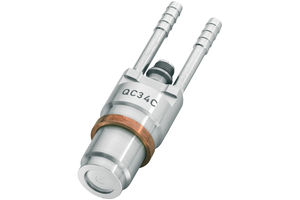

Sensor QC34C
The industry benchmark for 9.9mm thermodynamic analysis sensors
The AVL sensor QC34C is designed for midrange engines, and features a 9.9mm mounting diameter. It is equipped with a built-in sensor identification (SID) for sensor data management (SDM).
This quartz combustion pressure sensor includes active water-cooling to ensure a long life and excellent thermodynamic behavior for robust, accurate results. Should the cooling system fail, this powerful engine development tool is designed to survive temperatures of up to 350°C.
A measuring range from 0 to 250 bar and an overload limit of 300 bar make this a highly sensitive indicating sensor. Shock resistance of 2,000 g and an operating temperature from -40 to 350 °C deliver a robustness that ensures reliability. Despite weighing just 15 g, this sensor is a comprehensive and versatile combustion analysis solution.
Scope of Supply
- Sensor QC34C
- Piezo-input cable CI41-1
- Coupling CC41
- Gasket SC20
- Spare gasket SG20
- Calibration sheet
- Documentation
Article Number
- TIGG1364A.01
-
-
Installation with an AS02 adaptor set. *) Rigid adhesive, e.g. LOCTITE 648 or Henkel omniFIT.
-
Sensor dimensions
