Pressure sensor for combustion analysis
Sensor QC34D
The industry standard in size M10 for thermodynamic analysis

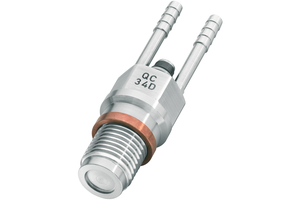

The AVL sensor QC34D sensor is designed with a 10 mm mounting thread especially for midrange engines. This quartz combustion pressure sensor includes active water cooling to ensure a long life and excellent thermodynamic behavior.
In case a failure should occur in the cooling system, this piezoelectric combustion sensor is designed to endure temperatures up to 350 °C. Additionally, it is equipped with a built-in SID for SDM.
With a measuring range up to 250 bar, and overload rated at 300 bar, this indicating sensor is as sensitive as it is durable. Shock resistance greater than or equal to 2,000 g ensure robustness, while three calibrated ranges offer flexibility.
The sensor QC34D is built to support in-depth combustion analysis activities. This piezoelectric combustion sensor is both reliable and accurate.
Scope of Supply
- Sensor QC34D
- Piezo-input cable CI41-1
- Coupling CC41
- Gasket SG20
- Accessory kit (protection cap + 2 O-rings)
- Spare gasket SG20
- Calibration sheet
- Documentation
Article Numbers
- TIGG1367A.01
-
-
Sensor dimensions
-
Direct installation.
-
Installation with the adaptor AH14 and Pin-Tool Z314. *) Rigid adhesive, e.g. LOCTITE 648.
-
Installation with adaptor AH18 and box spanner TT07. *) Rigid adhesive, e.g. LOCTITE 648.
