Chassis Dynos Graz, Austria

Location: AVL Headquarter, Graz
TÜV SÜD Accredited Laboratory

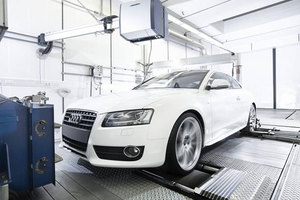

State of the Art Chassis Dyno

Our chassis dynos are equipped with modern AVL emissions equipment such as Micro Soot Sensors and Particle Counter which allow us to run stable and repeatable tests for EU6, SULEV, Tier 2 Bin 5 and Tier 2 Bin 2.


Skill Areas and Services

  • Execution of emissions, function and climatic tests in a temperature range -30°C to +50°C
  • Privacy and protection on all 2 WD and 4WD chassis dynos, assembly halls and workshops
  • Short term availability (2 or 3 shift operation and weekend)
  • Validated chassis dynos (regular round-robin comparisons executed together with european OEM)
  • Emissions instrumentation according EU6, SULEV, Tier 2 Bin 5 and Tier 2 Bin
  • Micro Soot Sensor, FTIR, Opacimeter, Particle Counter
  • Automated calibration of transmission shift control with auto pilot
  • Fuel consumption, temp, pressures and driveability measurement
  • We offer a pick-up and delivery service starting from your location
  • Correlation tests between the client and AVL's chassis dynos available on request
4WD chassis dyno
Zöllner 48" single roller with moveable axle
  • 4WD with constant 396 kW (max. 730 kW)
  • Up to 250 km/h
  • Axle load 4,5t, axle wheel base 2,1 to 4,7 m
  • Vehicle mass 150 kg (two-wheeler) up to 5.400 kg
  • Auto Pilot




2WD climatic chassis dyno
Zöllner 48" single roller with moveable axle
  • Front/rear wheel drive with constant 150 kW (max. 258 KW)
  • Up to 250 km/h
  • Axle load 4,5t
  • Vehicle mass 150 kg (two-wheeler) up to 5.400 kg
  • Auto Pilot


Air stream blower
  • > Max. volume flow rate 160.000 m³/h
  • Vmax 200 km/h
  • Stream exit area 1 m² … 2 m²
  • Drive power 1.400 kW
  • Manual or automated control of wind speed, depending on the chassis dyno speed or engine oil/coolant temperatur

Air stream blower
  • Max. Volume flow rate 60.000 m³/h
  • Vmax 120 km/h
  • Manual or automated control of wind speed, controlled by chassis dyno speed or controlled engine oil/coolant temperatur



Test cell conditioning
  • Temperature range +20˚C to +50˚C
  • Relative humidity 35% - 55%




Test cell conditioning
  • Temperature range -30˚C to +50˚C
  • Relative humidity 35% - 55%
  • Cold storage area for up to 8 vehicles
  • Temperature range -30˚C to +23˚C


Emissions measurement
  • EU5, EU6, SULEV, Tier 2 Bin 5, for diesel & gasoline vehicles
  • CVS system with 4,5 to 27m³/min flow rate
  • Four modal analysis systems for diesel & gasoline vehicles
  • Particle measurement via phase selective measurement, particle balance, particle counter, opacimeter, soot measurement and micro soot sensor
  • Non-limited emissions measurement with FTIR or mass spectrometer




Particle Counter

The diagram shows the results of an NEDC test for two different vehicles. Vehicle A shows considerably higher peaks in the particle count than vehicle B. Conventional emissions equipment could not have measured this.


Micro Soot Sensor

A Micro Soot Sensor measures the transient soot concentration in mg/m3 and is suitable for both diesel and gasoline engine, with or without CVS systems. The integrated soot value shows excellent correlation with the particle mass on a CVS filter. The diagram shows the differences between hot and cold NEDC tests.
