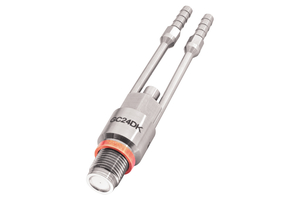

GC24DK_schraeg

Pressure sensor for combustion analysis

Sensor GC24DK

The industry benchmark in M8 (cooled) sensors for R&D.

With thermally-optimized GaPO4 piezoelectric crystals and M8 threads for convenient installation, the AVL GC24DK sensor is an extremely precise and reliable combustion analysis solution. Designed to be used in supercharged engines with very high specific output, this combustion pressure sensor is equipped with a sensor identification cable (SIC) for sensor data management (SDM).

The GC24DK sensor features an innovative active water-cooling system to ensure a long lifetime and excellent thermodynamic behavior. In case of cooling system failure this robust engine development tool is designed to survive extreme temperatures up to 400°C.

Operating in the smallest spaces under extreme conditions, the GC24DK sensor offers unparalleled performance for a sensor of its class.

Scope of Supply

  • Sensor GC24DK
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Gasket SG21
  • Accessory kit (protection cap + 2 O-rings)
  • Spare gasket SG21
  • Calibration sheet
  • Documentation

Article Number

  • TIGG1792A.01
