Pressure sensor with maximal robustness

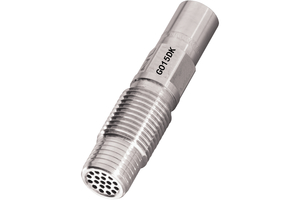

Sensor GO15DK Gen2
The industry benchmark in size M5 for monitoring tasks
Thanks to its M3 cable connector, the AVL sensor GO15DK Gen2 has a slim form factor. It can be equipped with a sensor identification cable (SIC) for sensor data management (SDM) and is especially suited to pmax monitoring with maximum levels of knock.
This industry benchmark combustion pressure sensor is built with a special Double ShellTM design. This enables the decoupling of its piezoelectric crystal elements from the negative influences of mechanical stresses that occur due to its mounting in the engine.
Additionally, an improved membrane material and geometry give this M5-size monitoring solution maximum robustness. A measuring range of up to 1,000 bar and shock resistance of 2,000 g means that this sensor delivers reliability and accuracy in a slim package.
Scope of Supply
- Sensor GO15DK Gen2
- Piezo-input cable CI35-1
- Coupling CC31
- Accessory kit (protection cap +2 spare O-rings)
- Calibration sheet
- Documentation
Article Number
- TIGG2121A.01
-
-
Sensor dimensions
-
Front sealed direct installation
