Pressure sensor for combustion analysis

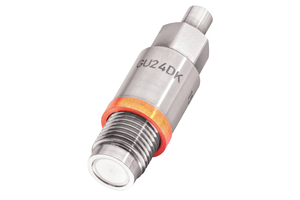

Sensor GU24DK

The industry benchmark for uncooled M8 sensors

The AVL sensor GU24DK combines the convenient installation of M8-sized thread-type indicating sensors with high accuracy and robustness. This makes it the ideal thermodynamic analysis solution for typical research and development work.

The combustion pressure sensor features thermally optimized piezoelectric crystals and is equipped with a sensor identification cable (SIC) for sensor data management (SDM). Employing shoulder-sealed direct installation into the cylinder head, it is the industry benchmark in M8-size uncooled piezoelectric combustion sensors.

Weighing just 14 g without the input cable, and with a shock resistance of up to 2,000 g, it is light and rugged. As with all AVL sensors, a wide range of accessories are available to ensure optimal usage.

Scope of Supply

  • Sensor GU24DK
  • Piezo-input cable CI31-1
  • Coupling CC31
  • Gasket SG21
  • Accessory kit (protection cap + 2 O-rings)
  • Spare gasket SG21
  • Calibration sheet
  • Documentation

Article Number

  • TIGG1887A.01
