Large Engine Controls

The AVL Group as a technology leader in large engine technology, supports all common innovations in regard to combustion optimization and exhaust gas aftertreatment with dedicated controls development: Our individual products are guided by the latest technologies of the engine control as well as the NOx and PM emissions minimization and are based on AVL's long experience in large engine design and combustion process.

AVL Approach

AVL offers different services and products for large engine control systems (ECS):

  • ECS requirements engineering
  • Support and assessment for ECS supplier selection
  • Support and assessment for sensor/actuator supplier selection
  • ECS function architecture design
  • ECS control algorithm development for dedicated functions
  • ECS control algorithm development for retrofit solutions
  • Complete ECS software development
  • Control problem analysis and solution preparation



ECS requirements engineering
Software high-level requirement document creation (diesel, natural gas, dual fuel). Description of required control functionality and of required system sensors and actuators. Document will be used for quotation request at ECS suppliers and as base for further development.

Support and assessment for ECS supplier selection
List and contact possible ECS suppliers. Clarification of details with possible suppliers. Compare suppliers' capabilities in reference to current project requirements. Recommendation of supplier and way of realization.

Support and assessment for sensor/actuator supplier selection
List and contact possible sensor/actuator suppliers. Clarification of details with possible suppliers. Compare suppliers' capabilities in reference to current project requirements. Recommendation of suppliers.

ECS function architecture design
Design of functional architecture, from conceptual work up to detail definition (e.g. data flow with multi-processor system; integration of aftertreatment system into ECS).

ECS control algorithm development for dedicated functions
Development of functions to be integrated into customers' software (from other supplier or internal). Delivery as concept-only or detail documents or models or software ready to be integrated. Delivery of open source code possible. E.g. air path (EGR, boost, AFR,…), fuel/gas path (torque, injector control, fuel pressure control,…), exhaust gas aftertreatment (SCR, DOC,…), monitoring, diagnostic, sensor acquisition (regular and complex sensors)

ECS control algorithm development for retrofit solutions
Development of solutions for production ECS. Application of additional features with no or minor changes to existing software (e.g. dual fuel retrofit unit).

ECS requirements engineering
Software high-level requirement document creation (diesel, natural gas, dual fuel). Description of required control functionality and of required system sensors and actuators. Document will be used for quotation request at ECS suppliers and as base for further development.

Support and assessment for ACS supplier selection
List and contact possible ECS suppliers. Clarification of details with possible suppliers. Compare suppliers' capabilities in reference to current project requirements. Recommendation of supplier and way of realization.



Customer Benefits

  • Controls development based on AVL's long engine design expertise
  • Independent solutions for prototype and production powertrains
  • Fully developed and proven algorithms including AVL's huge software know-how
  • Development and production of controls out of one hand – Synergies through a front loaded development approach

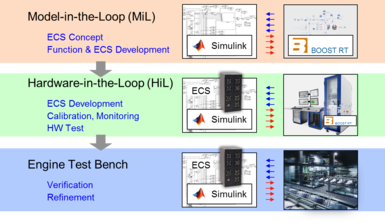

  • Robust controls design and cost effectiveness – Model-in-the-loop and Software-in-the-loop simulation for an early verification and validation
  • Reduced calibration effort
  • High quality development focus and judgment while having strict controls quality gate integrated into the development process
  • Overall process and supplier management
