Test Factory Utilities for Heavy-Duty On-Road Testing

The facilities are equipped and well-prepared for steady state and dynamic engine testing. Drive cycles combined with vehicle/drivetrain simulation and CVS measurement on engine testbeds are available.

AVL Approach

Commercial vehicle powertrain testing on engine and chassies test bed

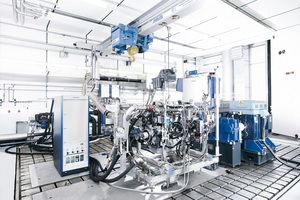

Heavy duty engine testbed up to 660kW

  • AC dyno
  • Up to 4,400 Nm
  • Up to 4,200 rpm
  • 0.52 – 10.7 kgm²
Fully equipped for the measurement of worldwide emission legislation limits (e.g. Tier 4).
Facilities for CFR-1065 certification testing.
Vehicle chassis dyno testbeds
  • 4WD climatic & emission CD,  up to 200 km/h
  • 4WD function & emission CD, up to 250 km/h
  • 4 WD acoustic CD, up to 200 km/h
Fully equipped for the measurement of world wide emission legislation limits.
 (e.g. EU6, Tier2Bin2, etc.)

On-board vehicle measurements

Measuring of on-board opacity, fuel, drivability, indicating and soot.
Test track for heavy-duty and off-road vehicles
Emission Measurements
Raw gas, pre & post catalyst, FTIR, mass spectrometer, smoke meter, opacimeter, particle counter, micro soot sensor, gravimetric particle measurement, CVS,
chemical analysis of fuel, lubricants and emissions (particulates).
