Fuel Cell Engineering for Passenger Cars and Electric Vehicles

Proton exchange membrane fuel cells (PEMFC) generate efficient and emission-free power for electric vehicles. Fuel cell vehicles (FCV) represent the "all performance cars" in the e-mobility sector i.e. they reach driving ranges similar to conventional cars even in the larger vehicle classes.

As the development processes nears commercialization the major fuel cell development efforts are focused on cost reduction, lifetime and reliability optimization.

AVL Solution

AVL offers PEM fuel cell engineering services, tools and technologies for development, optimization, integration and the validation of fuel cell components and systems.
Passenger Cars - Engineering Services (PEMFC Applications)

CFD analysis of PEMFC cells and components

The critical operating conditions of fuel cells lead to corrosion effects and reduction of stack lifetime. Many effects are related to problems with water management. Performance optimization therefore requires the identification of the problem(s) and their elimination by modification of cell design, material properties and operational parameters.

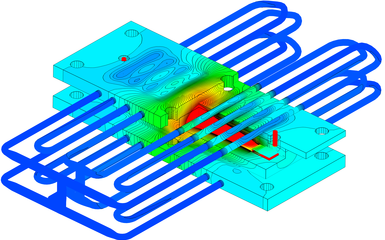

AVL FIRE Fuel Cell CFD Simulatio.png

AVL FIRE Fuel Cell CFD Simulation

  • Consideration of electrochemical effects, heat transfer and water balance
    (generation- condensation-evaporation-transport) in MEA
  • Modeling of critical gas permeation effects
  • Full 3D treatment of 2 phase flow in porous material and open channels
  • Validated models with flexibility for different membrane and electrode types
  • Experienced engineers for assessment and optimization
  • Standard procedures for meshing (AVL-FAME)
  • Applications for industrial & research projects for several years
  • In future also available for SOFC simulation

AVL THDA – FUEL CELL MONITORING

A critical operating status is usually monitored by measuring cell voltages individually. Large fuel cell stacks require costly and complicated measurement devices.

AVL Offer Package:

  • THDA is based on the analysis of the stack voltage only (1 voltage measurement even for 500+ cells stacks)
  • Operation at critical conditions distorts a super-imposed signal and forms detectable spectral components (harmonics)
  • Even if harmonics are caused by single cells only, the distortion will be measurable in the entire stack sum voltage
  • THDA can detect all major critical PEM failure modes like membrane drying, liquid water issues and starvation effects
  • In future SOFC monitoring will also be possible with THDA
  • Adds no additional HW in series product implementation

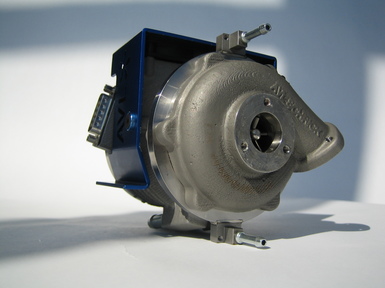

AVL FUEL CELL BLOWER DEVELOPMENT.JPG

AVL FUEL CELL BLOWER DEVELOPMENT

AVL offers customer specific fuel cell blower development for both SOFC and PEM Fuel Cell systems. Our blower design aims to bec compact and highly efficient, fulfilling all customer specifications.

AVL Fuel Cell Blower features:

  • Customized solutions for air compressors, hydrogen or anode recirculation blowers
  • Gas temperatures up to 800°C
  • Total electrical efficiency > 50%
  • 12V to 400V operation
  • Durability > 10.000h



LOAD MATRIXTM RELIABILITY ASSESSMENT ENGINEERING.png

LOAD MATRIXTM RELIABILITY ASSESSMENT & ENGINEERING

A prerequisite for the commercialization of fuel cells is the achievement of conventional product reliability. Today, field data and failure mode analysis for entire fuel cell systems are only fragmentary. Therefore, comprehensive reliability engineering approaches are required.

  • Systematic identification and evaluation of failure mechanisms and effects
  • Modelling of failure mechanisms - determination of load cycles for accelerated tests on automated
  • Fuel cell test benches
  • Determination of lifetime potential and demonstrable reliability for critical failure modes

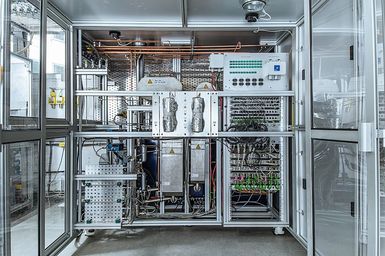

Foto ITS Prüfstand hochauflösend_1.jpg

AVL FUEL CELL TESTING

AVL offers testing of fuel cells (PEM and SOFC), BoP components (reformers, burners, heat ex- changers, catalysts...) or complete (sub)systems. Various tests including load cycles, performance, durability, contaminants, vibration, noise, climate and HiL can be performed.

Test rigs:

  • Highly Flexible Development Test Rig
  • Component Test Rig
  • Fuel Processing and Catalyst Test Rig
  • SOFC Stack or Cell Test Rig
  • Fuel Cell System Test Container
  • Vibration Tests Rigs
  • Noise chamber
  • Climate chamber
  • Chassis dynamometer
  • Battery testing
  • E-motor testing
  • Test track

Applications:

  • Testing of components (SOFC and PEM stacks up to 10kW, reformers, burners, heat exchangers,…) or complete (sub)systems
  • HIL real-time interface to couple hardware on the test rig with real-time simulation models (e.g. for control system development)
  • Fully automated testing of load cycles, performance, durability, contaminants
