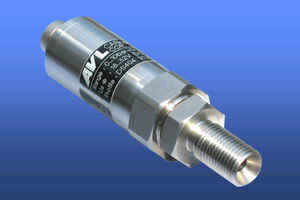

CANopen Pressure Transducer C-FEM-P

A high-end digital transducer for precise pressure measurement in automotive engine and powertrain testing.

AVL Approach

The C-FEM-P's high level of integration in AVL PUMA OpenTM ensures fast real-time processing of data transferred from the pressure transmitter to the automation system. The acquired signals are transferred in physical units to the AVL PUMA OpenTM system by means of a CANopen interface.

C-FEM-P pressure transducers acquire pressures of liquid and gaseous media. The C-FEM-P allows dynamic pressure monitoring and recording (up to 1,000 Hz per transducer). In addition to the internal calibration, CANopen pressure transducers support PUMA Open's semiautomatic calibration (SAC) with 16 calibration points. The values between the calibration points are determined by means of linear interpolation.


Benefits at a Glance

  • High precision recording of very dynamic pressure curves due to high speed data acquisition of up to 1,000 Hz
  • Real-time data synchronization with the AVL PUMA OpenTM testbed automation system
  • Reduction of testbed downtime by means of automatic zero offset calibration
  • High comfort for the operator due to automatic sensor detection and automatic addressing (daisy-chain technology)

Technical Data

High precision recording of very dynamic pressure curves due to high speed data acquisition of up to 1,000 Hz

  • Real-time data synchronization with the PUMA Open testbed automation system

Total error:

+/- 0.1% F.S. / -25°C...+85°C , typ.

Repeatability:

+/- 0.05% F.S. , typ.

Operating temperature:

-25 … +85 °C

Media temperature:

-25 … +100 °C

Sampling rate:

5 Hz … 1'000 Hz in steps

Total through-put-rate per CAN-Line:

5'000 values/sec. max.

Data interface:

CANopen DS404

Addressing:

Automatic position referred addressing by means of Daisy-Chain during power-up

Number of transmitters per CAN-Line:

50 Nodes max.

Temperature compensation:

Yes

Linearization:

Yes

Digital low pass filter:

Yes

IP protection:

IP 65

Pressure connection:

Outside thread M14x1,5

Vibration:

15g (20....2'000Hz)

Power supply:

24 VDC via CAN-Bus connector
