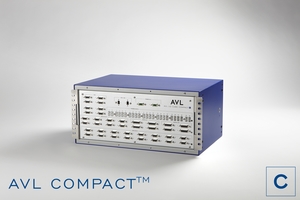

AVL COMPACT I/O Cubes

The AVL COMPACT I/O Cube is designed as a versatile I/O module for the test cell to allow data acquisition and control of a wide variety of I/O devices. The Cube provides various input and output channels. The channel assignment is software-configurable by the user. Depending on the required I/O configuration, there are different I/O cubes available, an all-in-one I/O cube or dedicated cubes for temperature or pressure channels. Additional cubes can be easily added to the system.

Benefits at a Glance

  • One software-configurable measurement cube for all signal types.
  • Output of demand values.
  • Modular design: additional cubes can be added.
  • High accuracy and resistance to noisy signals by use of front end technology.

Technical Data



Acquisition rate

Selectable for each channel (1 Hz, 10 Hz, 100Hz) depending on the channel type

Universal Channel

16 universal measurement channels for the measurement of voltages, currents, resistances and measuring bridges

Temperature Channel

24 temperature measurement channels for measurement of thermo couples (types K, J, R, S, T, B, E and N) 8 temperature measurement channels for measurement of RTDs (Pt100, Pt1000)

Analog Channel

8 analog outputs for voltages or currents (for demand value setting)

Digital Channel

16 digital outputs (8 relay, 8 transistor outputs for digital or PWM) 16 digital inputs

Power Consumption

62Watt typical and 208 Watt maximal

Dimensions (with x height x length)

215 mm x 464 mm x 320 mm

Weight

8,2 kg

Supply voltage

24 V DC +-20% Reserve batterie protected

Degree of protection

IP 20
