AVL ROADSIM 72" MIM TRUCK™ Chassis Dynamometer

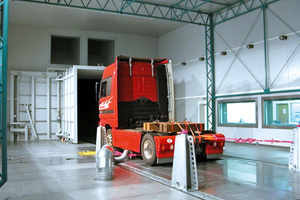

The AVL ROADSIM 72" MIM TRUCK™ Chassis Dynamometer is designed for testing buses and trucks in applications like emission analysis.

AVL Approach

The cradled AC motor is arranged between two fixed rollers. It is designed for ideal road load simulation of vehicles. The mass simulation is realized electrically by the AC motor with a mechanical base inertia of the two rollers.

Benefits at a Glance

  • Just a small pit is needed due to the compact 'motor-in-the-middle' design
  • Highly accurate force and speed measurement chain through modern sensor equipment
  • Dead weight calibration through zero without demounting of calibration device and zero-point shifting

Technical Data

The following specification shows typical values and is subject to change. Alternative technical configurations are available upon request.



Nominal tractive force in motor mode (per axle)

24,997N @ v≤65km/h

Nominal power in motor mode (per axle)

450kW @ v≥65km/h

Max. speed




Roller diameter


Distance between outer roller edges


Distance between inner roller edges


Inertia simulation range


Inertia simulation range (2WD)

3,500kg … 30,000kg

Roller set axle load


Max. axle load


Measurement accuracy data


Tolerance of tractive force measurement

± 0.2% of full scale

Tolerance of speed measurement


Control accuracy data


Tolerance of tractive force control

±0.4% of full scale

Tolerance of speed control

±0.1% of full scale

Road load simulation


Tolerance of inertia and road load simulation

±1% of calculated value (but not better than force control)


Measuring Principle

Tractive force
The tractive force is measured by a strain gauge sensor supporting the cradle mounted motor.

The speed is measured by an incremental encoder with two 90° shifted tracks with detection of the direction of rotation.
