Pressure Sensors for Test Systems

High-Precision Pressure Measurement for All AVL Testbed Applications

AVL is the premier supplier of precision sensors for any kind of test system, including sensors to measure the pressure in liquid and gaseous media

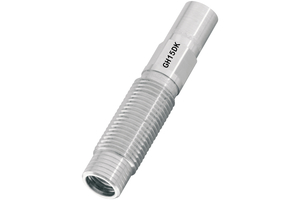

Image H2 Pressure Sensor

We offer digital and analog pressure sensors for measuring pressure in liquid and gaseous media. Special hydrogen-resistant pressure sensors are available for fuel cell testing. The CANopen driver, required for AVL’s digital pressure sensors, is included in all AVL PUMA 2™ software solutions. This deep integration in the automation system allows easy parameterization, data acquisition in real-time, and automatic zero offset compensation.

Pressure sensors are required to ensure that the Unit Under Test (UUT) is tested in defined, safe operating conditions (oil, water, turbo-charge pressure, etc.). Our unique pressure sensors support the development of various types of Unit Under Test in order to deliver improved performance and efficient operation.


High Performance Digital and Analog Pressure Sensors

Versatile pressure sensors for gaseous and liquid media, characterized by outstanding specifications such as

  • Total error band of typ. 0.1% FS (including all errors such as temperature, non-linearization, offsets, etc.)
  • Wide media temperature range from -40°C to +120°C
  • High data acquisition rate of up to 1kHz
  • Compatible with media containing 0% to 100% hydrogen

Our portfolio comprises a comprehensive variety of pressure sensors suitable for all different testing solutions.

Hydrogen-Resistant

No hydrogen embrittlement, thanks to special diaphragm material

High Precision

High-precision measurement over a wide temperature range

Easy Operation

Greater comfort for the operator thanks to automatic sensor detection and automatic addressing (daisy chain technology)

CANopen Pressure Sensor C-FEM-P

A high-end digital sensor deeply integrated into the automation system AVL PUMA 2™. Data is transferred from the pressure sensor to the automation system at up to 1,000 Hz in real time.
A special hydrogen-resistant variant is available for fuel cell testing.

Analog Pressure Sensor APT100

The measurement box can house up to eight independent miniature CANopen pressure sensors. With sampling rates of up to 200 Hz per sensor, you can even monitor and record dynamic pressure signals. The sensor processor features include temperature compensation, linearization, and digital filtering. You can also exchange each pressure sensor individually

Pressure Measurement Box

The measurement box can house up to eight independent miniature CANopen pressure sensors. With sampling rates of up to 200 Hz per sensor, you can even monitor and record dynamic pressure signals. The sensor processor features include temperature compensation, linearization, and digital filtering. You can also exchange each pressure sensor individually.

Pressure Measurement Snap-In

Perfect for automotive engine and powertrain testing, and designed to be used on pallets. It can house up to 12 miniature CANopen pressure sensors

Rupert Fellegger

Our pressure sensors for test systems are best-in-class and greatly appreciated by customers worldwide, and used for all applications in automotive testing.

– Rupert Fellegger, Senior Product Manager Pressure Measurement, AVL List
