AVL EMCON 6™

Experience the performance

AVL EMCON 6™ is the market-leading testbed monitoring and control system for a variety of propulsion systems.


Our control and monitoring system for different testbed applications, enable customers to easily control and monitor a variety of propulsion systems on engine, e-motor, fuel cell, powertrain and vehicle testbeds.

Exact and precise control results in high repeatability of the tests, thereby supporting the efficient integration and calibration of vehicle components.

EMCON 6 is completely integrated into the AVL PUMA 2™ automation system, but it’s also available as an independent system prepared for automatic remote operation.

The automotive industry is facing a number of challenges from increasingly strict global CO2 restrictions, increasing complexity due to new, emerging technologies and the large variety of propulsion systems. Thus, testing on a testbed has become a necessity, not just an option. A state-of-the-art test environment must not only be able to handle this complexity but also enable virtual development for real-world driving conditions along with durability and misuse test capability.


Tried and tested control algorithms enable the exact loading of the propulsion system according to the test requirements. Moreover, EMCON 6 allows you to perform durability tests under real-world driving conditions.

AVL EMCON 6

EMCON 6 follows a consistent operation philosophy for fuel cell, e-motor, engine, transmission, powertrain and vehicle testbeds.

Maximum Accuracy

Highly accurate simulated vehicle operation due to easy integration of ISAC 6™ and Testbed.CONNECT models

Top Performance

Reliable, high performance controller with EtherCAT® interface to AVL Dynos at up to 10 kHz

Easy Operation

Easy parameterization with PUMA 2 and test field server AVL PUMA 2™ Share

EMCON 6 is completely integrated into the AVL PUMA 2™ automation system, but it’s also available as an independent system prepared for automatic remote operation.

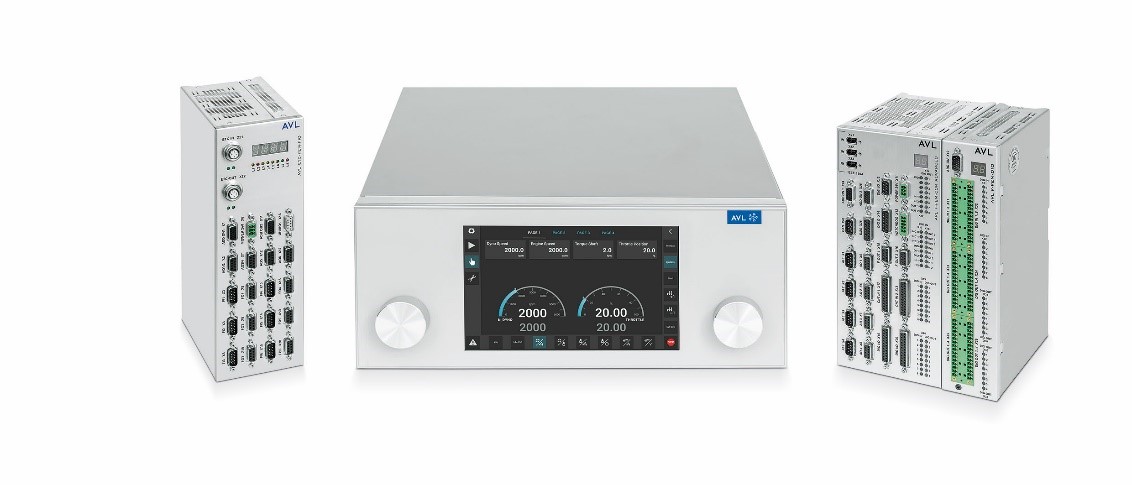

EMCON 6 Testbed Controller

The EMCON 6 Testbed Controller is a standalone operating, control, and monitoring system for various testbed applications, including combustion engine, electric motor, and e-axle tests. It manages the essential load conditions between the load system (dyno) and the unit under test, and seamlessly integrates into existing environments. Additionally, it supports AVL ISAC™ simulations for e-axle tests and allows integration of custom simulation models via Testbed.CONNECT Embedded.

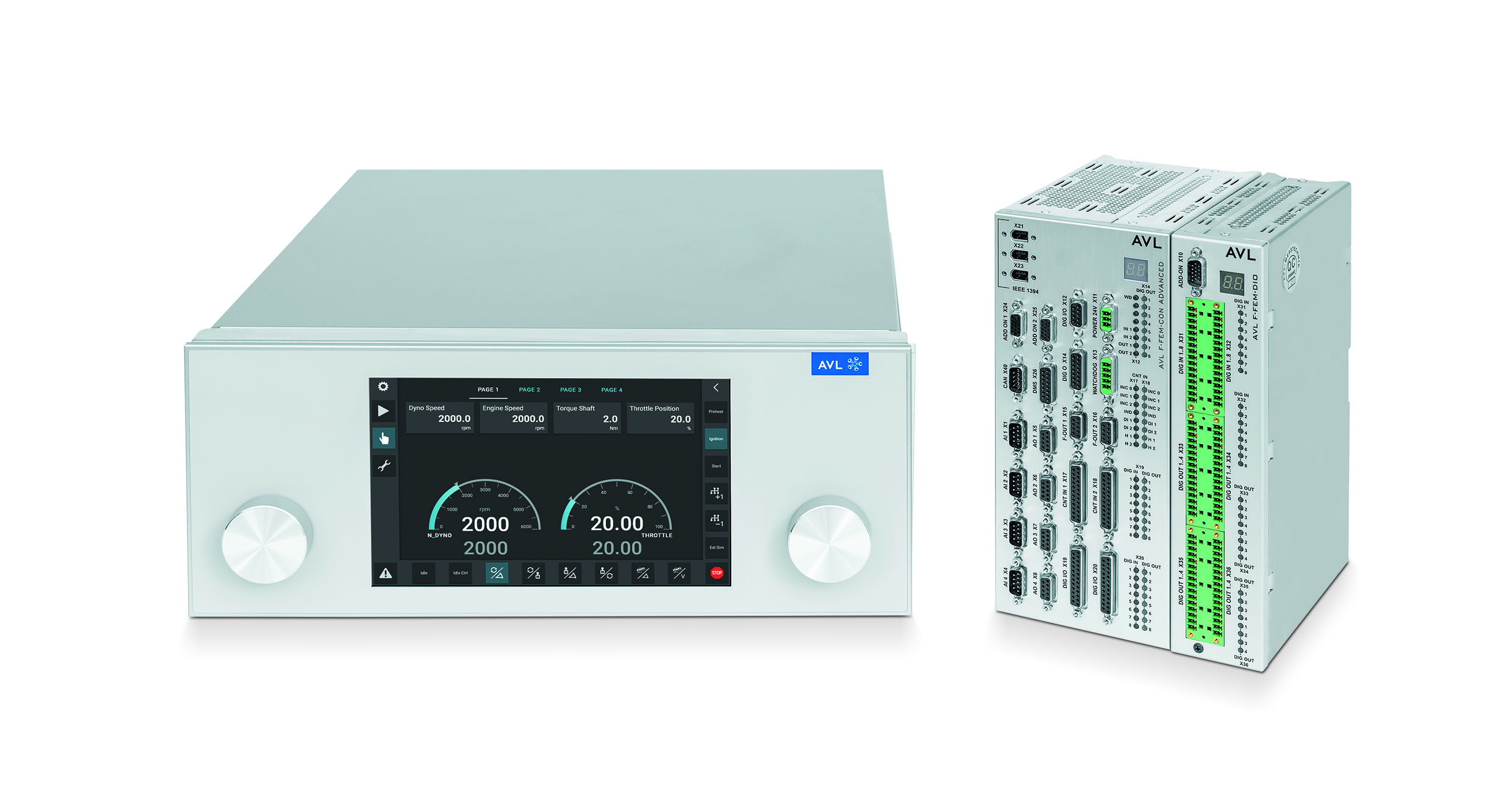

EMCON 6 Dyno Controller

The EMCON 6 Dyno Controller is a standalone control system for individual dynos. It simplifies the operation and control of the load system. With proven control algorithms and high-performance real-time control, this controller is ideal for dynamically managing modern load systems. It serves as an excellent interface for integrating new load systems into existing environments.

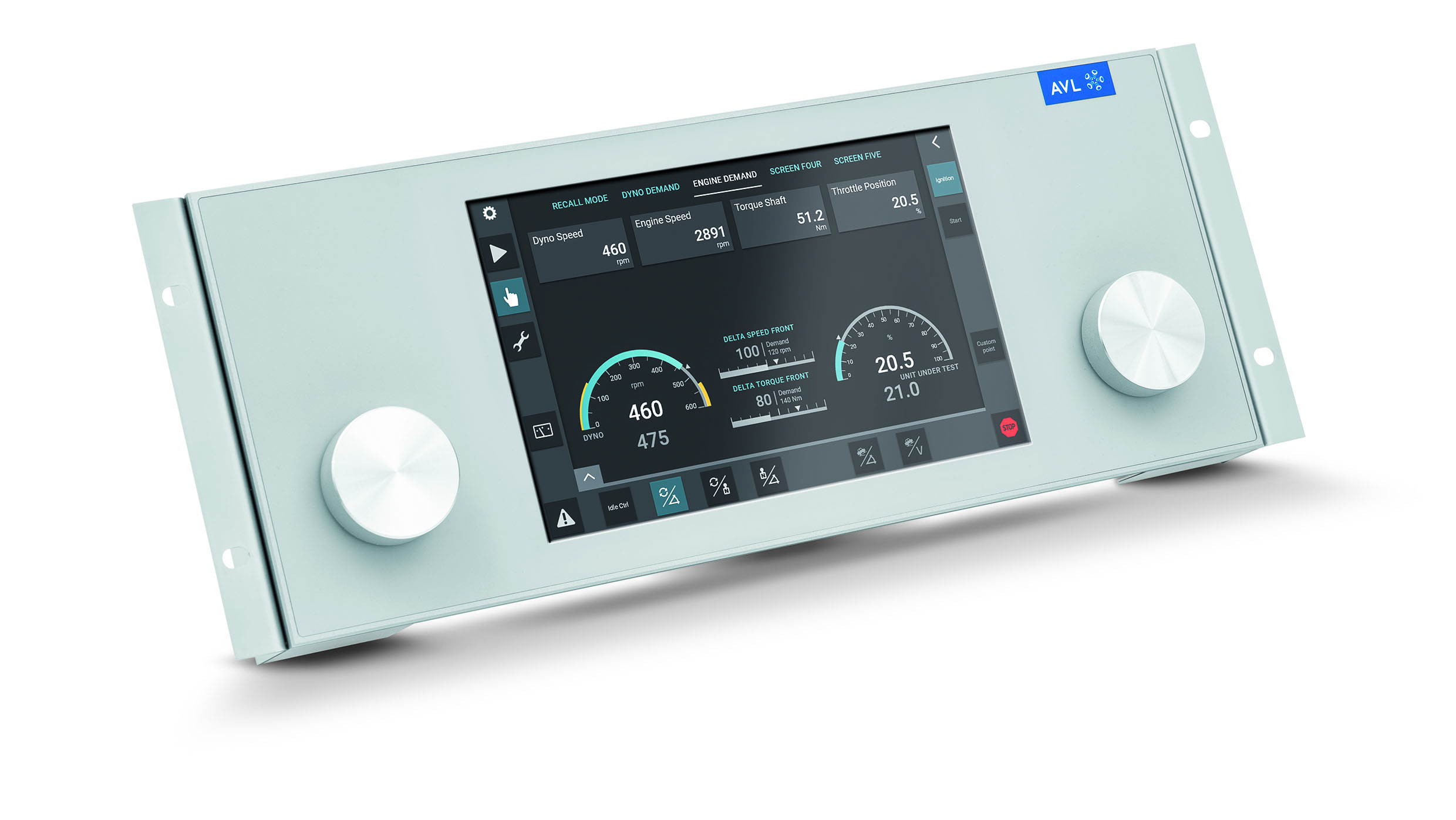

Operating Panel TP400

The high-quality 10.1-inch touch display responds to touch gestures and confirms the operator’s selection through haptic feedback. In combination with the two rotary encoders for setpoint adjustment, manual operation of the testbed becomes very secure and extremely intuitive.
